Deveup Digital Oscillating Knife Cutting Machines in the Packaging Industry
In our life, we can see a variety of different packaging materials packaging items, such as corrugated paper, kraft paper, gray cardboard, EPE foam, PE foam, EVA packaging liner, hollow board and so on. In the logistics and transportation of goods, the good or bad packaging and packaging tightness greatly determines the degree of quality of the goods when signing.
Cutting as a packaging product production and processing process is very critical part of the quality of cutting directly and the final packaging products linked to the effect. The CNC cutting machine has highly accurate cutting ability, which can ensure the size and shape of each cut piece.
In addition to cutting, slotting and creasing are also common processes in the packaging industry. CNC cutting machines can be equipped with different types of cutterheads to fulfill different process requirements. According to the design requirements of the product, the cutter head is driven by the cutting machine to crease or groove according to the preset path of the system, and then cut out the shape, the material can be bent and molded according to the predetermined position, and become the form of the box that we commonly see in our daily life.
Devep has a wide range of cutting heads that can meet the cutting, slotting and creasing requirements of most materials in the packaging industry, let's take a look!

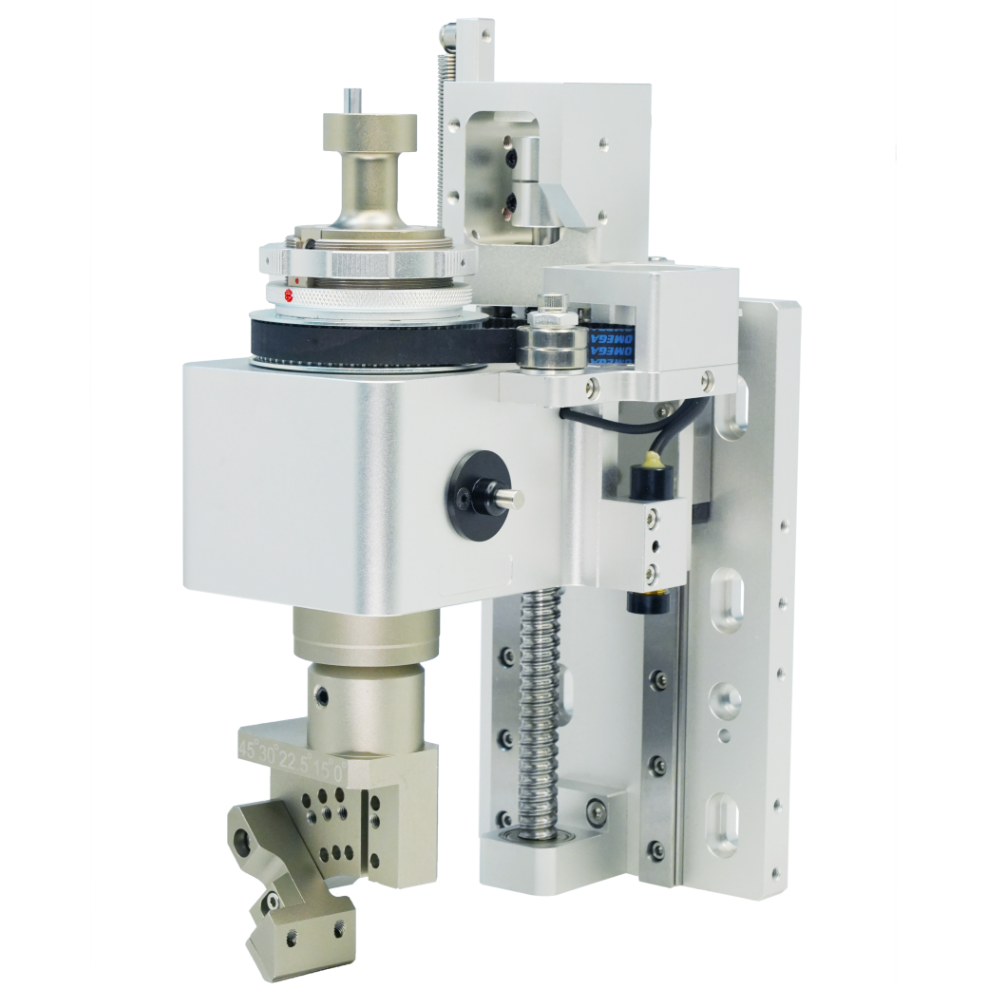

Bevel Cutting Tool - Slotting

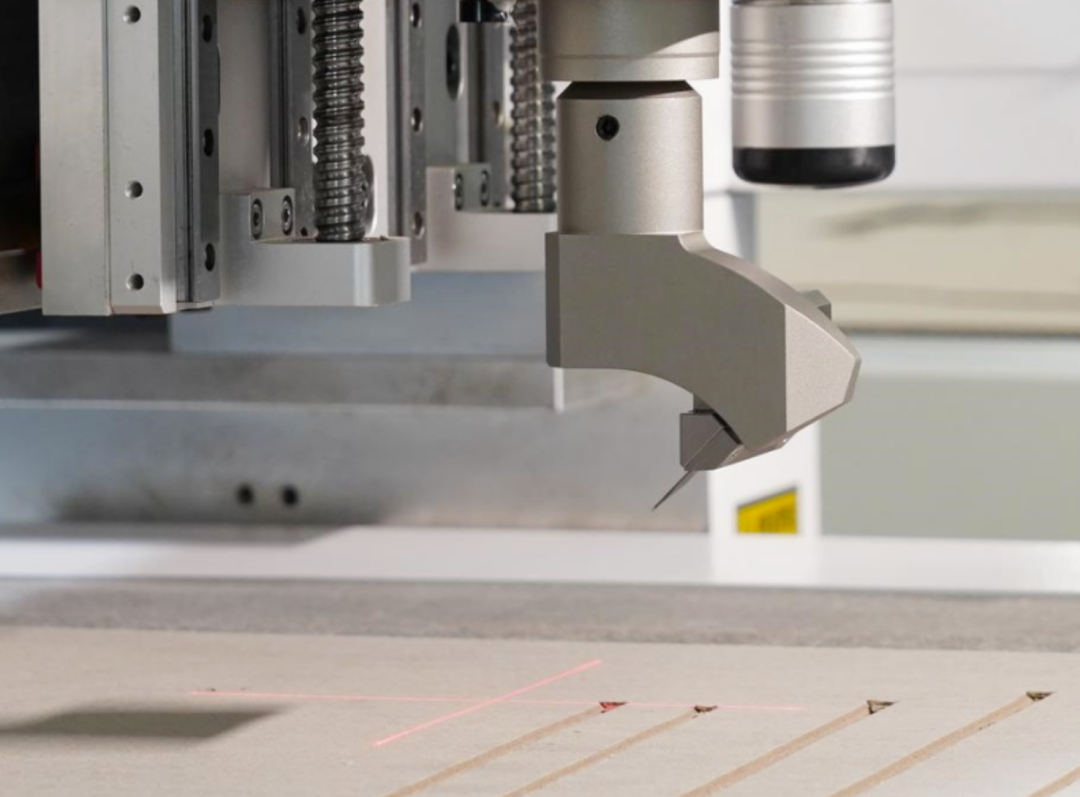

The miter cutter removes excess scrap along a designed path on the surface of the material to form a groove line so that the material sheet can be folded along the groove line to form the corners of the body, which becomes the common form of the packaging box we see every day.
By changing the mounting angle of the miter blade (0°, 15°, 22.5°, 30°, 45°), different sizes of V-grooves and beveled surfaces can be processed. Of course, Cailun Technology CLT can also customize the miter cutter head with different angles according to the manufacturers' actual grooving and processing needs.
Devep miter cutters are available in a wide variety of types, single miter, double miter, press material miter, etc.; and the grooving quality is good, with flush groove lines and good consistency.

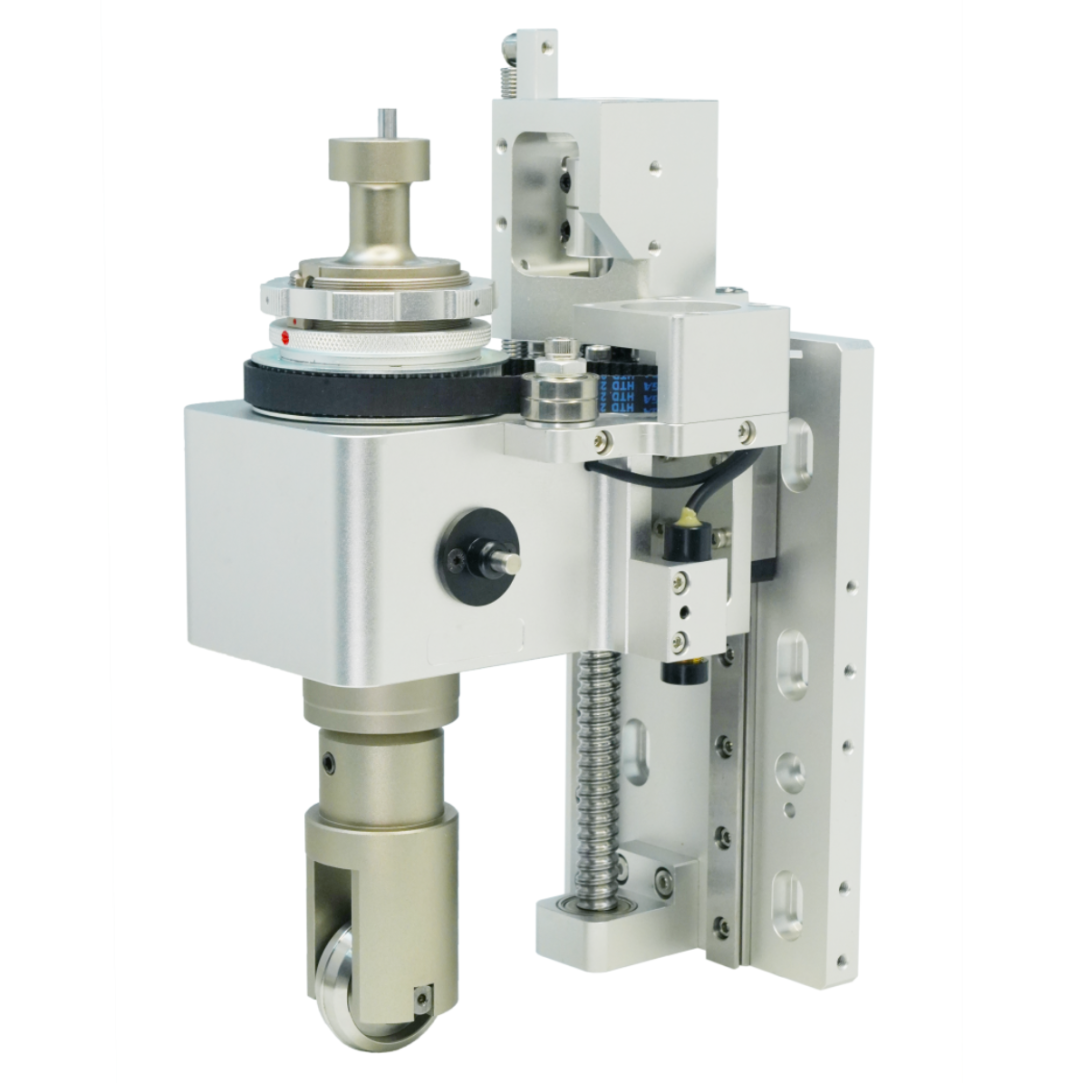

Creasing Tool-Indentation
The round wheel of the indentation wheel rolls over the material and creates an indentation effect on the material, enabling the material board to fold along the indentation line to form the corners of the body, which becomes the common box form we see in our daily life.
By choosing different edges of the indentation wheels, different specifications of the indentation effect can be realized. Manufacturers can also customize different edges according to the actual creasing needs.
Deveup indentation wheels have a certain degree of hardness in the cutting edge part of the wheel, which results in clear and consistent indentation and good quality of the final product.

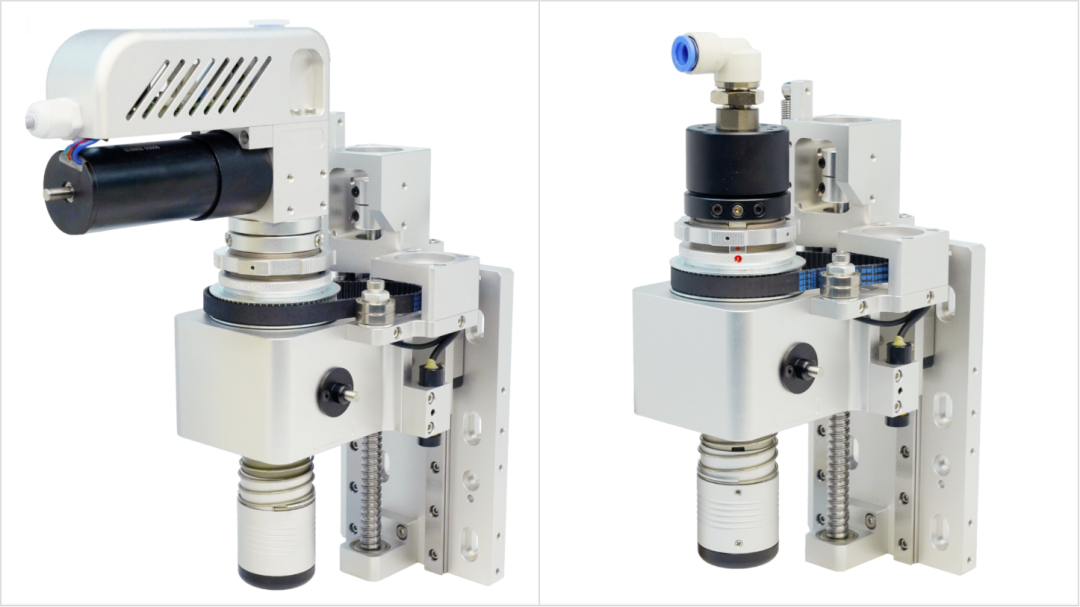

Electric oscillating tool/Pneumatic oscillating tool - Cutting
Vibratory knives and pneumatic knives are two types of cutter heads that are currently used very widely in the packaging industry to achieve rapid cutting of materials by utilizing high-frequency vibration of the upper and lower blades.
Vibrating knife through the motor driven blade high-speed reciprocating motion to cut off the material is particularly suitable for cutting; pneumatic knife through the compressed gas driven blade high-speed reciprocating motion to cut off the material, particularly suitable for corrugated paper, kraft paper, gray cardboard, pearl cotton, EVA packaging liner, hollow board and other materials cutting and modeling.
Deveup oscillating knife cutters are available in a wide range of types, medium power, high power, large amplitude; and the cutting quality is good, no jagged teeth, high precision.

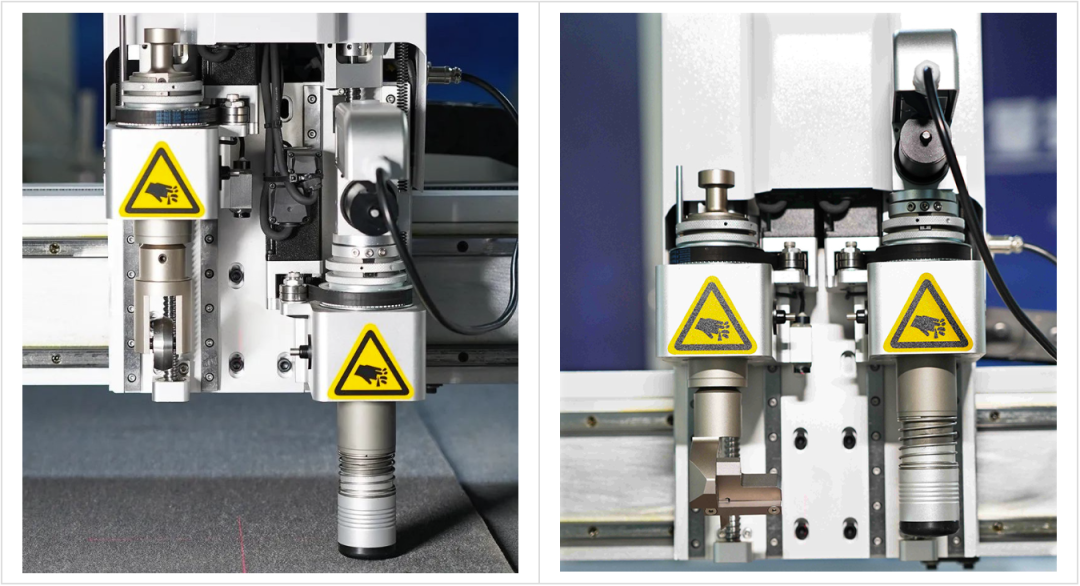

Different materials and different process requirements, the cutting machine with different cutter head, Deveup can provide the best cutter head matching program to meet the production needs.
Commonly used cutting head solutions for packaging industry
Electric oscillating tool/pneumatic oscillating tool + creasing wheel: suitable for thin cardboard, hollow board materials, through the round wheel of the pressure wheel rolled over the material, creating an indentation effect on the material, and then the oscillating knife cuts out the contour of the full.
Electric oscillating knife/pneumatic knife + beve cutting knife: It is more suitable for thick cardboard and hollow board materials, through the beveling knife processing different specifications of V-groove and beveling, and then the vibrating knife cuts out the packaging contour.
What are the uses and benefits of DEVEUP oscillating knife cutting machines?
Creasing+V-grooving+cutting, for carton box package forming.
